規格型號：91779019
頻率：32.768KHZ
尺寸：1.6*1.0mm
PDF
產品描述：藍牙模塊,32.768KHZ,Q-SC16S0320570CADF,SC-16S,1610mm，尺寸為1610mm，頻率為32.768KHZ，精度5ppm，日本精工晶振，進口晶振，Seiko晶振，無源貼片晶振，SMD晶振，石英晶體諧振器，水晶振動子，音叉晶體，低損耗晶振，...

藍牙模塊,32.768KHZ,Q-SC16S0320570CADF,SC-16S,1610mm，尺寸為1610mm，頻率為32.768KHZ，精度5ppm，日本精工晶振，進口晶振，Seiko晶振，無源貼片晶振，SMD晶振，石英晶體諧振器，水晶振動子，音叉晶體，低損耗晶振，高品質晶振，手機晶振，可穿戴設備晶振，藍牙模塊晶振，無線模塊晶振，時鐘應用晶振，Q-SC16S0322070CAAF晶振，Q-SC16S0321070CAFF無源晶體。

32.768K晶振產品主要應用：手機，可穿戴設備，各種模塊，各種微信號時鐘等領域。藍牙模塊,32.768KHZ,Q-SC16S0320570CADF,SC-16S,1610mm.

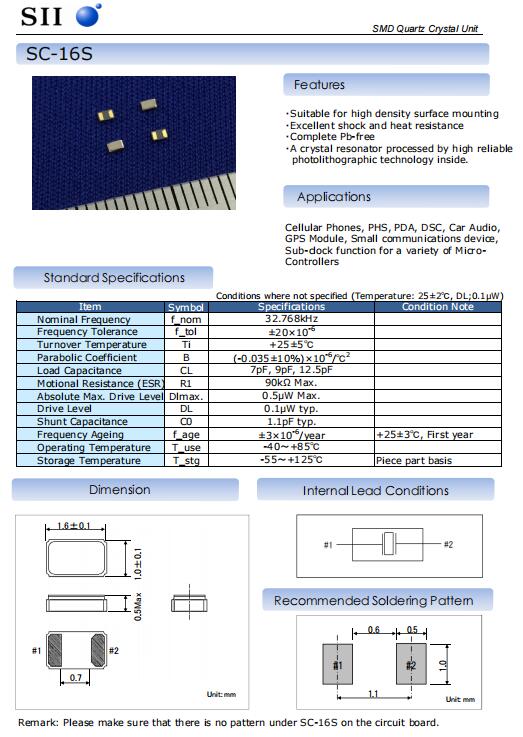

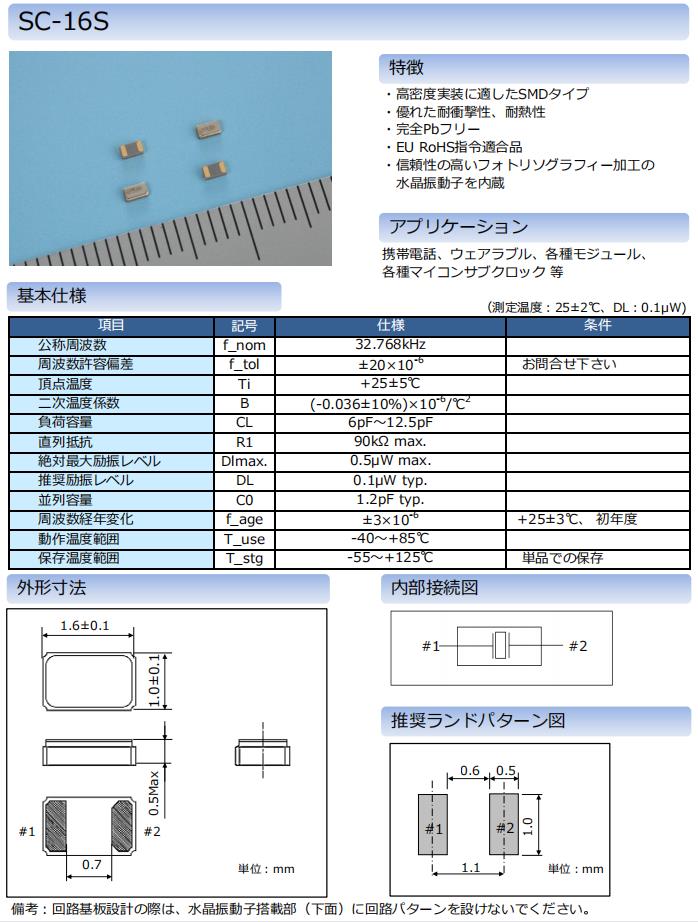

藍牙模塊,32.768KHZ,Q-SC16S0320570CADF,SC-16S,1610mm 參數表

項目	符合	規格	條件
標稱頻率	f_nom	32 .768kHz
頻率容許偏差	f_tol	±20×10-6	請咨詢
頂點溫度	Ti	+25±5℃
二次溫度系數	B	(-0 .036±10%)×10-6/℃2
負載容量	CL	6pF~12 .5pF
串聯電阻	R1	90kΩ max .
絕對最大激勵水平	Dlmax .	0 .5μW max .
推薦激勵等級	DL	0 . 1μW typ .
并行電容	C0	1.2pF typ .
頻率經年變化	f_age	±3×10-6	+25±3℃、初年度
工作溫度范圍	T_use	-40~+85℃
保存溫度范圍	T_stg	-55~+125℃	單品保存

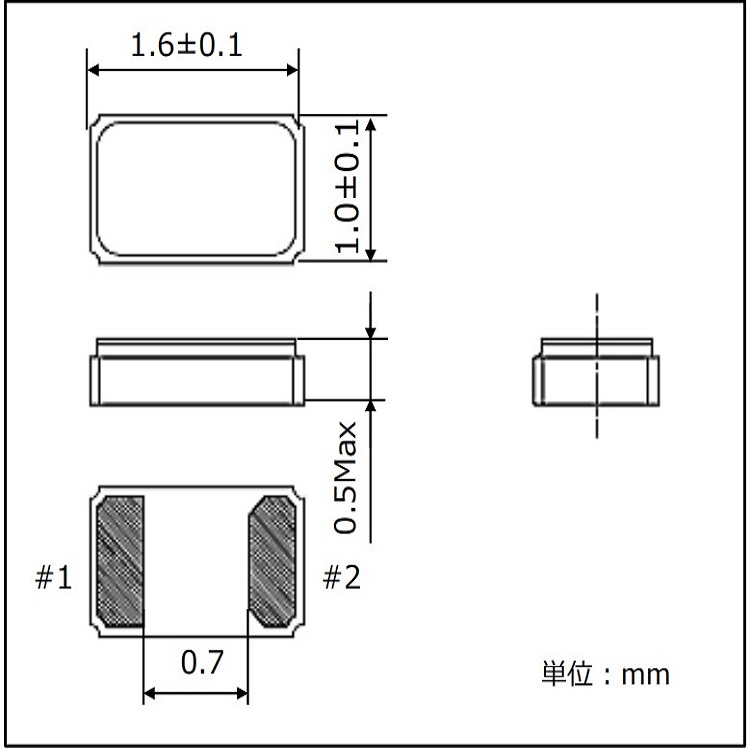

藍牙模塊,32.768KHZ,Q-SC16S0320570CADF,SC-16S,1610mm 尺寸圖

Q-SC16S0320570CADF晶振特點：

適合高密度封裝的SMD類型

·卓越的耐沖擊性、耐熱性

·完全無Pb

·符合歐盟RoHS法令的產品

·可靠性高的光刻加工

內置晶體振蕩器

更多相關的日本精工晶振型號

原廠編碼	廠家	型號	系列	頻率	頻率穩定度
Q-SPT7P032762070FF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SPT7P032761070FF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SPT7P032760570FF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC32S03220C5AAE	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC32S03210C5AFE	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC32S03205C5ADE	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC32S0320570CADF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC32S0321070CAAF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC32S0322070AAAF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC32S03220C5AAAF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC32S03210C5AAFF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC32S03205C5AADF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC20S0322070CAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC20S0321070CAFF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC20S0320570CADF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
VT200F-6PF20PPM	Seiko精工晶振	VT-200-F	kHz Crystal (Tuning Fork)	32.768kHz	-
VT200F-12.5PF20PPM	Seiko精工晶振	VT-200-F	kHz Crystal (Tuning Fork)	32.768kHz	-
Q-SPT7P0327620C5GF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SPT7P0327610C5GF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SPT7P0327605C5GF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC16S03220C5AAAF	Seiko精工進口晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC16S03210C5AAAF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC16S03205C5AAAF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC16S0322070CAAF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC16S0321070CAFF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC16S0320570CADF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC20S03220C5AAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC20S03210C5AAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC20S03205C5AAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SPT2S0327620C5DJ	Seiko精工晶振	SSP-T2A-F	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
