首頁進口晶振TXC晶振汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振

    汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振

  • 規格型號：33026774
  • 頻率：16.9344MHz

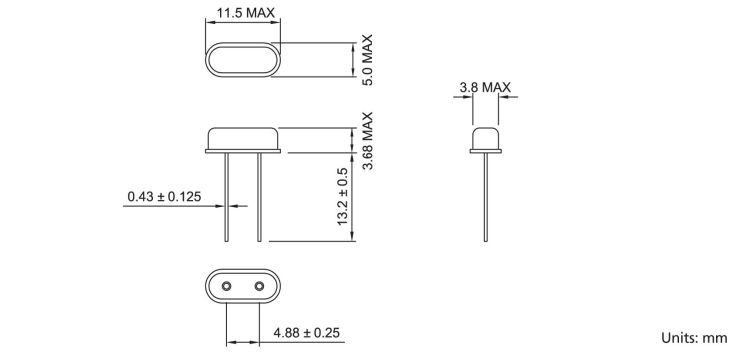

  • 尺寸：11.5*5.0
  • PDF
  • 產品描述：汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振，臺灣晶技晶振公司，插件晶振,超小型晶振，小型汽車晶振，車載收音機晶振，實時時鐘晶振，汽車級晶振，無源晶振，車載USB晶振，高精度晶振，耐高溫晶振，高品質晶振，...


汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振，臺灣晶技晶振公司，插件晶振,超小型晶振，小型汽車晶振，車載收音機晶振，實時時鐘晶振，汽車級晶振，無源晶振，車載USB晶振，高精度晶振，耐高溫晶振，高品質晶振，臺產晶振，49S晶振，插件晶振，低成本晶振，石英晶振HC-49SAS系列金屬罐類型晶體,特點:工作溫度范圍寬。惡劣環境下性能優越可靠。符合RoHS指令/不含Pb.
汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振
     型號      AS
     頻率范圍      4 MHz ~ 25 MHz
     工作模式      Fundamental
     頻率容差      ± 30 ppm
     溫度范圍內的頻率穩定度      ± 30 ppm Max.
     工作溫度      - 40 ~ +85 ℃
     驅動電平      10 μW (typical) ; 300 μW (Max.)
     負載電容      12 pF, or specify
     儲存溫度范圍      - 40 ~ +85 ℃
     可靠性標準      AEC-Q200VER.C

汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振


TXC原廠編碼 生產商品牌 型號 頻率 頻率穩定度 頻率容差 負載電容
AS-4.194304MAHE-B TXC晶振 AS 4.194304MHz ±30ppm ±30ppm 12pF
AS-10.000MDHI-B TXC晶振 AS 10MHz ±30ppm ±20ppm 16pF
AS-11.0592MAHI-B TXC晶振 AS 11.0592MHz ±30ppm ±30ppm 16pF
AS-11.2896MAGQ-B TXC晶振 AS 11.2896MHz ±50ppm ±30ppm 10pF
AS-12.000MAQL-B TXC晶振 AS 12MHz ±30ppm ±30ppm 22pF
AS-12.000MDHK-B TXC晶振 AS 12MHz ±30ppm ±20ppm 20pF
AS-13.560MDIE-B TXC晶振 AS 13.56MHz ±20ppm ±20ppm 12pF
AS-14.31818MDHI-B TXC晶振 AS 14.31818MHz ±30ppm ±20ppm 16pF
AS-16.000MAGE-B TXC晶振 AS 16MHz ±50ppm ±30ppm 12pF
AS-16.9344MAGH-B TXC晶振 AS 16.9344MHz ±50ppm ±30ppm 15pF
AS-3.579545MDHE-B TXC晶振 AS 3.579545MHz ±30ppm ±20ppm 15pF
AS-4.000MAGJ-B TXC晶振 AS 4MHz ±50ppm ±30ppm 18pF
AS-4.000MAHH-B TXC晶振 AS 4MHz ±30ppm ±30ppm 15pF
AS-4.000MDGJ-B TXC晶振 AS 4MHz ±50ppm ±20ppm 18pF
AS-4.000MDHK-B TXC晶振 AS 4MHz ±30ppm ±20ppm 20pF
AS-4.000MEHK-B TXC晶振 AS 4MHz ±30ppm ±10ppm 20pF
AS-8.000MAGE-B TXC晶振 AS 8MHz ±50ppm ±30ppm 12pF
AS-8.000MAHI-B TXC晶振 AS 8MHz ±30ppm ±30ppm 16pF
AS-3.579545MAHE-B TXC晶振 AS 3.579545MHz ±30ppm ±30ppm 12pF
AS-4.000MAHK-B TXC晶振 AS 4MHz ±30ppm ±30ppm 20pF
AS-8.000MAHK-B TXC晶振 AS 8MHz ±30ppm ±30ppm 20pF
AS-10.000MAHI-B TXC晶振 AS 10MHz ±30ppm ±30ppm 16pF
AS-11.2896MAHK-B TXC晶振 AS 11.2896MHz ±30ppm ±30ppm 20pF
AS-13.225625MAHK-B TXC晶振 AS 13.225625MHz ±30ppm ±30ppm 20pF
AS-13.560MAHE-B TXC晶振 AS 13.56MHz ±30ppm ±30ppm 12pF
AS-14.31818MAHI-B TXC晶振 AS 14.31818MHz ±30ppm ±30ppm 16pF
AS-16.000MAHK-B TXC晶振 AS 16MHz ±30ppm ±30ppm 20pF
AS-16.9344MAHH-B TXC晶振 AS 16.9344MHz ±30ppm ±30ppm 15pF
AS-20.500MAHQ-B TXC晶振 AS 20.5MHz ±30ppm ±30ppm 10pF
AS-28.63636MAHE-B TXC晶振 AS 28.63636MHz ±30ppm ±30ppm 12pF
AS-12.000MAHK-B TXC晶振 AS 12MHz ±30ppm ±30ppm 20pF
AS-16.9344MAGI-B TXC晶振 AS 16.9344MHz ±50ppm ±30ppm 16pF
AS16000001 TXC晶振 AS 16MHz ±50ppm ±30ppm 12pF
